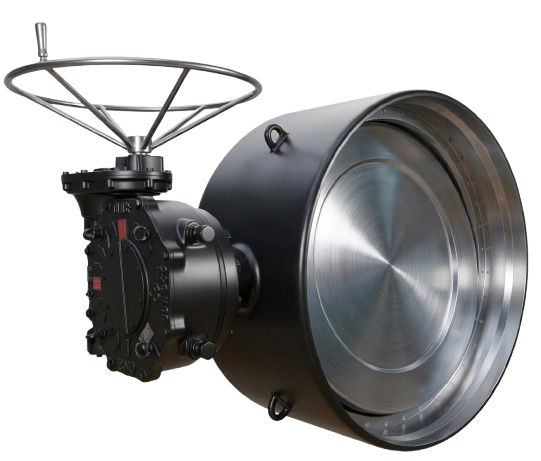

Butterfly Valve
Butterfly Valve

Butterfly Valve

Butterfly Valve
  • Operator
    Worm gearbox with manual handwheel
  • Material
    Body : SB410 / Disk : A351 CF8M HCr plating / Seat : Nickel Alloy 625 / Seat gasket : Non-Asbestos sheet / Shaft : A479 410 / Shaft seal : Viton / Packing : Graphite
  • Valve type
    High performance triple eccentric / Double Offset
  • Mounting flange
    ISO5211 (part turn actuator)
  • Surface protection
    SSPC-SP 10, Inorganic zinc 75㎛ + Epoxy 40㎛ (sky blue) / ※ Special material or special requirements by request

Information

Size : DN150 ~ DN1600

적용분야 : 지역난방/냉방

Rating : ASME #150, #300 / GOST PN16, PN25, PN30

Flow Direction : BI-Direction

End Connection : BW(ASME B16.25), RF(ASME B16.5)

Temperature : -40°C ~ +200°C (below 0°C request)
